| Priter Brand | Zebra ZE511-4 |
| Application Type | Tamp-On |
| Media Output | Left / Right |
| Labeling Position | Side |
| Print Method | Thermal Transfer / Direct Thermal |
| Printing Speed | 305MM/S(203DPI) |
| 254MM/S(200DPI) | |
| Labeling Width | 20-104MM |
| Labeling Length | 20-990MM |
| Liner Width | 16-114MM |
| carbon band Width | 25.4-107MM |
| carbon band Thickness | 0.06-0.3MM |
| carbon band Parameters | Core Diameter: 25.4 mm |
| Outer Diameter: 101.61 mm | |
| Length: 600 m | |
| Wind: Wax Side Out | |
| Sensing Mode | Gap Sensor (Transmissive) / Reflective Sensor |
| Label Type | Continuous / Die-Cut (Pitch)/Pre-Die-Cut Labels/Black-Mark Labels |
| Coated Paper/Synthetic Paper/Glassine Liner / Glassine Backing | |
| Label Roll Dimensions | Inner Diameter φ76.2MM |
| Outter Diameter: φ300MM | |
| External Interfaces | RS232 Serial Port / Parallel Port / USB 2.0 / Ethernet Port |
| Memory | 16MB SDRAM、64MB Flash Memory |
| Operating Panel | Touch Screen |
| Pneumatic System | FESTO |
| Overall Dimensions | L820*W670*H1600MM (Customizable） |
| Labeling Speed | ≤15P/min |
| Lableling Accuarcy | ±2MM |
| Power Supply Specification | 220V/50HZ 1.5KW |
| Machine Weight | 100KG |

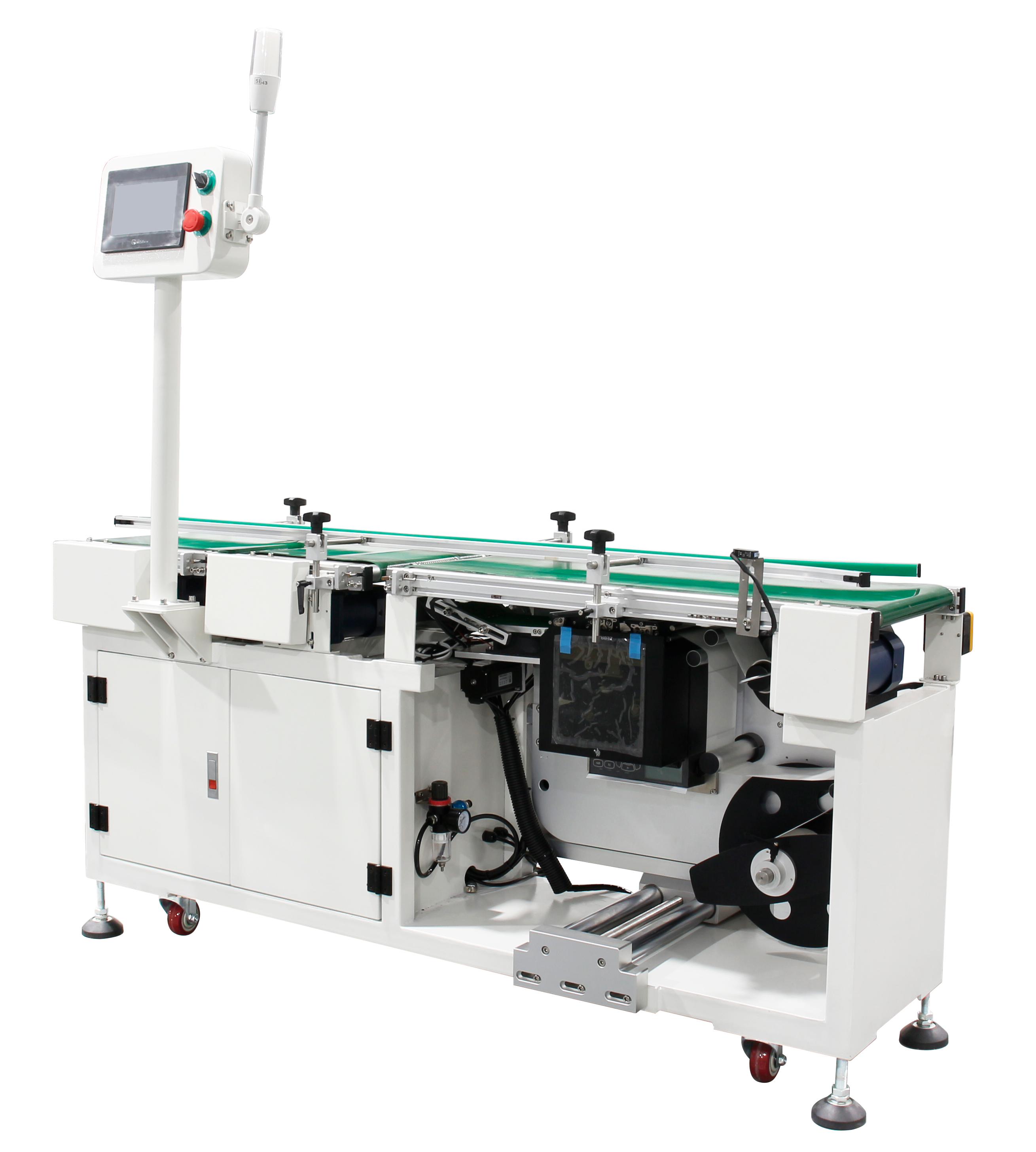

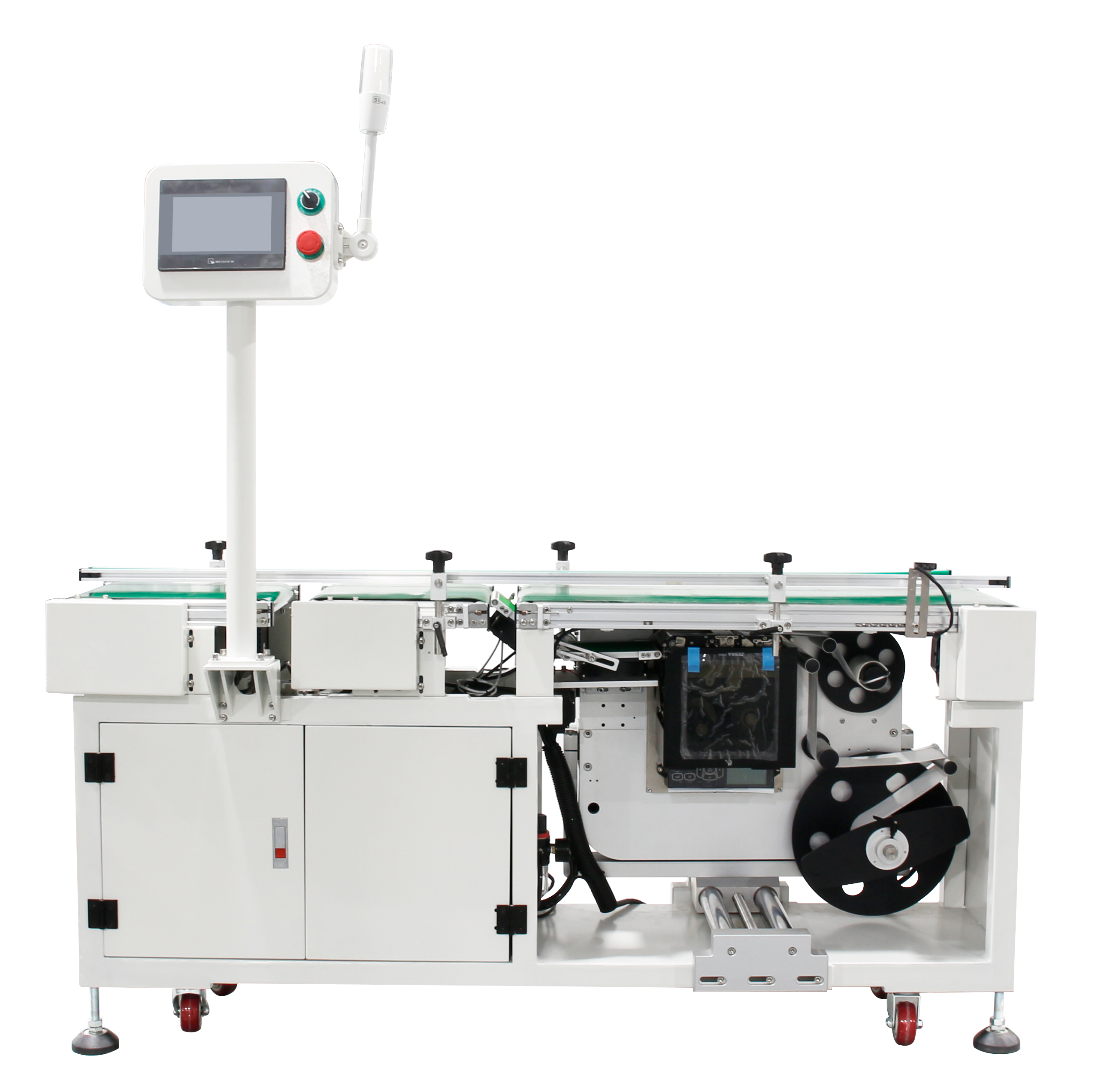

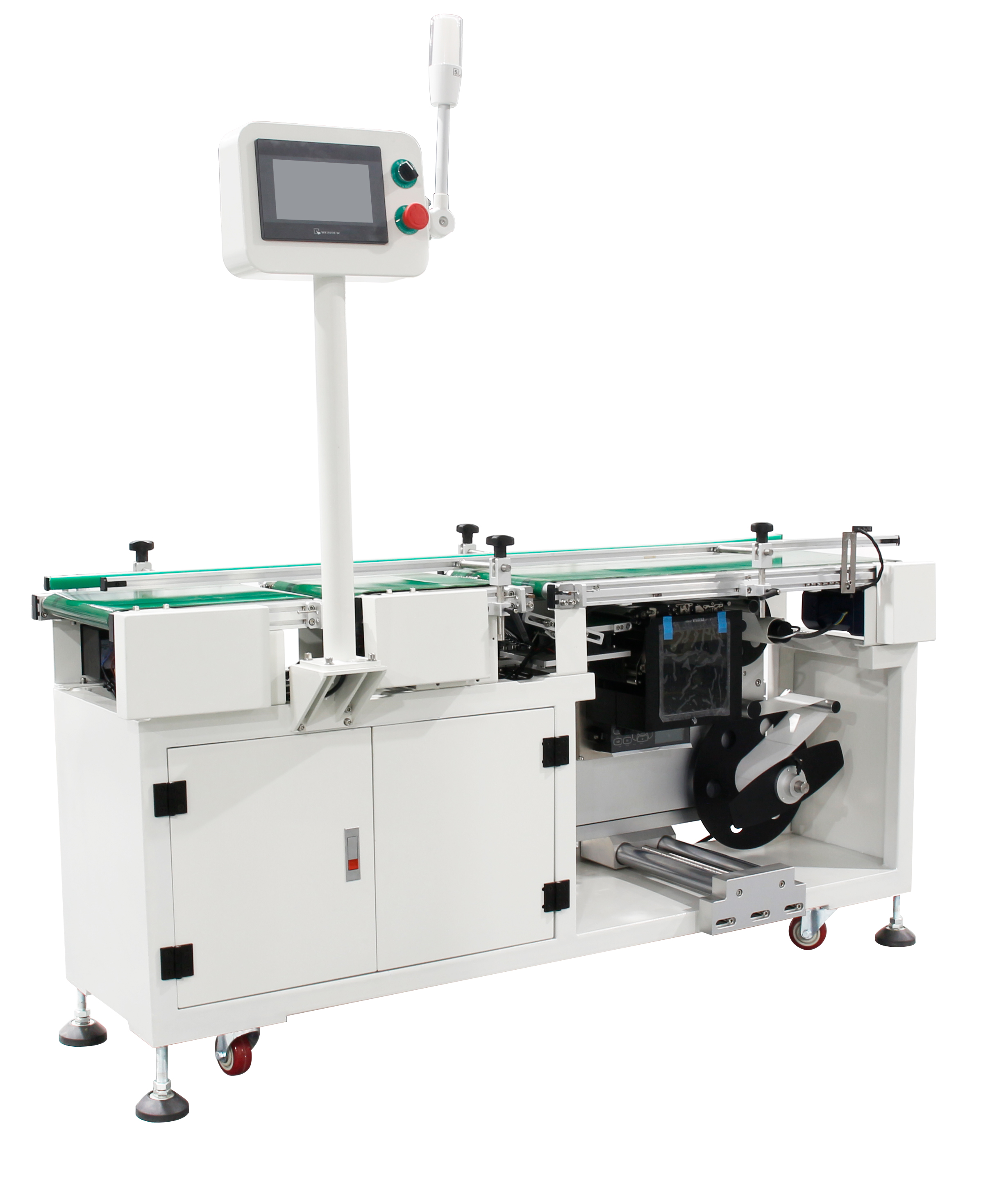

Zebra ZE511-4 Bottom Print and Apply Labeling System
This system is built around the Zebra ZE511-4 industrial print engine, integrated with a high-speed pneumatic tamp applicator and FESTO pneumatic components. Specifically designed for bottom labeling applications, it delivers high-precision print-and-apply performance on cartons, bagged products, and various item bottoms—an ideal identification solution for logistics, manufacturing, and distribution centers.
Key Advantages:
※High-Performance Printing: 300 DPI high-resolution printing with speeds up to 300 mm/s, ensuring crisp and scannable barcodes.
※Precise Application: Optimized for bottom labeling with a vacuum applicator pad, effectively overcoming gravity sag with ±2 mm placement accuracy.
※On-Demand Printing: Print-and-apply mode eliminates pre-printed label waste and supports real-time variable data.
※Data Connectivity: Standard Ethernet and serial ports enable seamless ERP/MES integration for full traceability.
※Durable & Reliable: Industrial-grade construction with FESTO pneumatic components and modular design for easy maintenance.
※Applications: Serial numbers on electronic product bottoms, traceability codes on food packaging bottoms, hidden labels on tote bottoms, and process labels on component bottoms.
