| Priter Brand | Zebra ZE511-4 |
| Application Type | Tamp-On |
| Media Output | Left / Right |
| Labeling Position | Side |
| Print Method | Thermal Transfer / Direct Thermal |
| Printing Speed | 305MM/S(203DPI) |
| 254MM/S(200DPI) | |
| Labeling Width | 20-104MM |
| Labeling Length | 20-990MM |
| Liner Width | 16-114MM |
| carbon band Width | 25.4-107MM |
| carbon band Thickness | 0.06-0.3MM |
| carbon band Parameters | Core Diameter: 25.4 mm |
| Outer Diameter: 101.61 mm | |
| Length: 600 m | |
| Wind: Wax Side Out | |
| Sensing Mode | Gap Sensor (Transmissive) / Reflective Sensor |
| Label Type | Continuous / Die-Cut (Pitch)/Pre-Die-Cut Labels/Black-Mark Labels |
| Coated Paper/Synthetic Paper/Glassine Liner / Glassine Backing | |
| Label Roll Dimensions | Inner Diameter φ76.2MM |
| Outter Diameter: φ300MM | |
| External Interfaces | RS232 Serial Port / Parallel Port / USB 2.0 / Ethernet Port |
| Memory | 16MB SDRAM、64MB Flash Memory |
| Operating Panel | Touch Screen |
| Pneumatic System | FESTO |
| Overall Dimensions | L820*W670*H1600MM (Customizable） |
| Labeling Speed | ≤15P/min |
| Lableling Accuarcy | ±2MM |
| Power Supply Specification | 220V/50HZ 1.5KW |
| Machine Weight | 100KG |

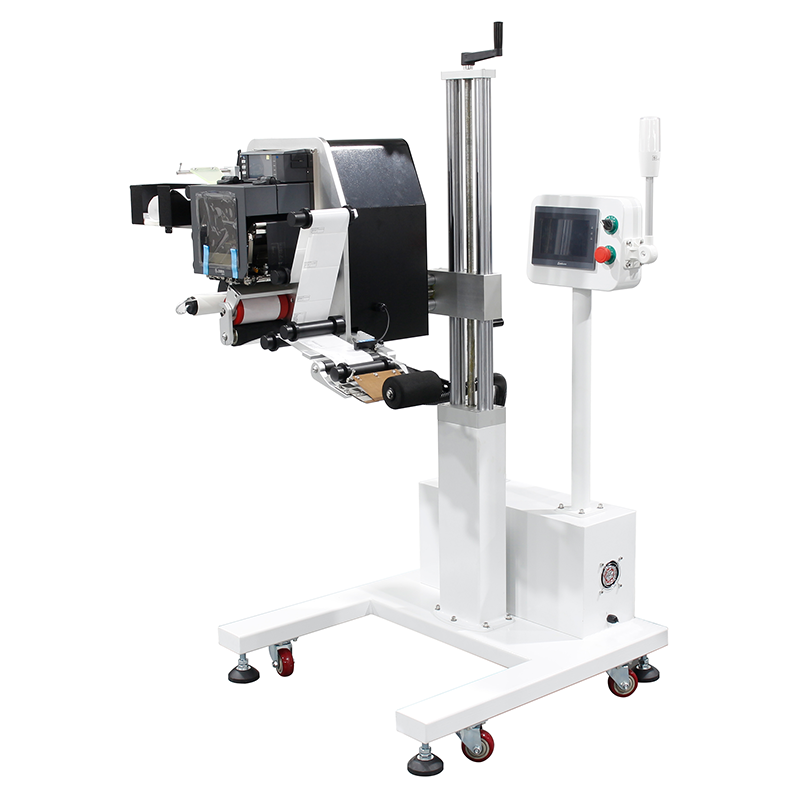

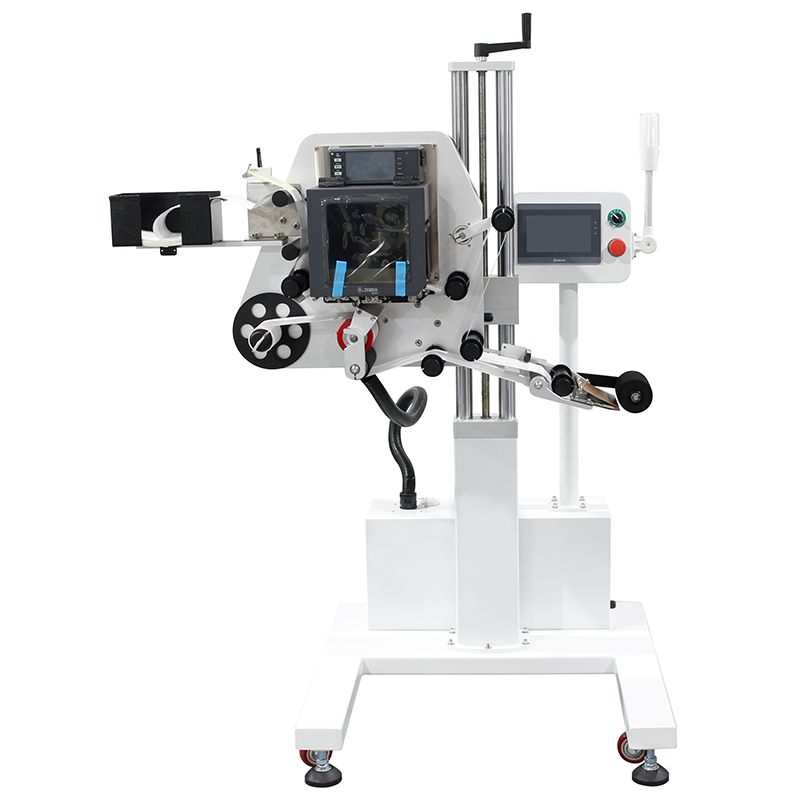

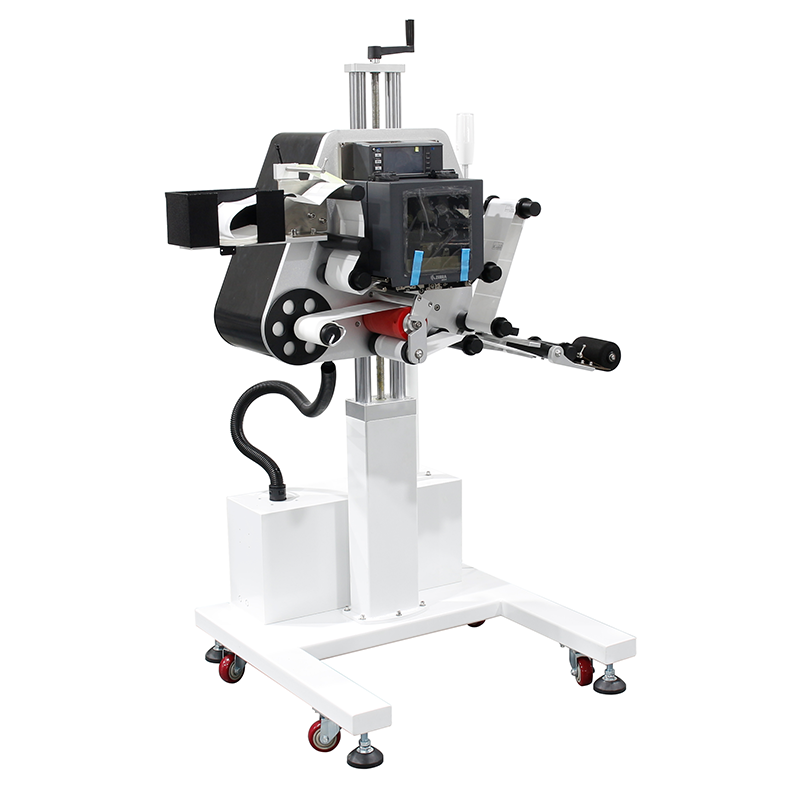

Zebra Real-Time Print and Apply Express List Labeling Machine
This system integrates the Zebra ZE511-4 industrial print engine with a high-speed express list applicator, engineered for precise label placement on hanging documents, polybags, and overhanging file folders. It delivers a compact, on-demand solution for order fulfillment, parcel sorting, and document management in fast-paced logistics environments.
Key Advantages:
High-Performance Printing: 300 DPI resolution at speeds up to 300 mm/s ensures sharp, scannable barcodes.
Precision Express List Application: Optimized for loop or flag labels, achieving accurate placement on document edges, hanging tabs, and polybag headers.
Real-Time On-Demand Printing: Eliminates pre-printed label waste and supports dynamic variable data integration.
Seamless Connectivity: Standard Ethernet and serial ports enable direct ERP/MES integration for full traceability.
Industrial Durability: Built with rugged components and modular design for continuous operation in high-volume distribution centers.
Applications: Shipping labels on hanging polybags, order documents in e-commerce fulfillment, file folder tabs, and hanging ID tags for sortation systems.
