| Priter Brand | Zebra ZE511-4 |
| Application Type | Tamp-On |
| Media Output | Left |
| Labeling Position | Side |
| Print Method | Thermal Transfer / Direct Thermal |
| Resolution | 203/ 300 DPI |
| Printing Speed | 305MM/S(203DPI) |
| 254MM/S(200DPI) | |
| Labeling Width | 20-104MM |
| Labeling Length | 20-990MM |
| Liner Width | 16-114MM |
| carbon band Width | 25.4-107MM |
| carbon band Thickness | 0.06-0.3MM |
| carbon band Parameters | Core Diameter: 25.4 mm |
| Outer Diameter: 101.61 mm | |
| Length: 600 m | |
| Wind: Wax Side Out | |
| Sensing Mode | Gap Sensor (Transmissive) / Reflective Sensor |
| Label Type | Continuous / Die-Cut (Pitch)/Pre-Die-Cut Labels/Black-Mark Labels |
| Coated Paper/Synthetic Paper/Glassine Liner / Glassine Backing | |
| Label Roll Dimensions | Inner Diameter φ76.2MM |
| Outter Diameter: φ300MM | |
| External Interfaces | RS232 Serial Port / Parallel Port / USB 2.0 / Ethernet Port |
| Memory | 16MB SDRAM、64MB Flash Memory |
| Operating Panel | Touch Screen |
| Pneumatic System | FESTO |
| Overall Dimensions | L800*W670*H1600MM (Customizable） |
| Labeling Speed | 20-40P/Min |
| Lableling Accuarcy | ±2MM |
| Power Supply Specification | 220V/50HZ 1.5KW |
| Machine Weight | 100KG |

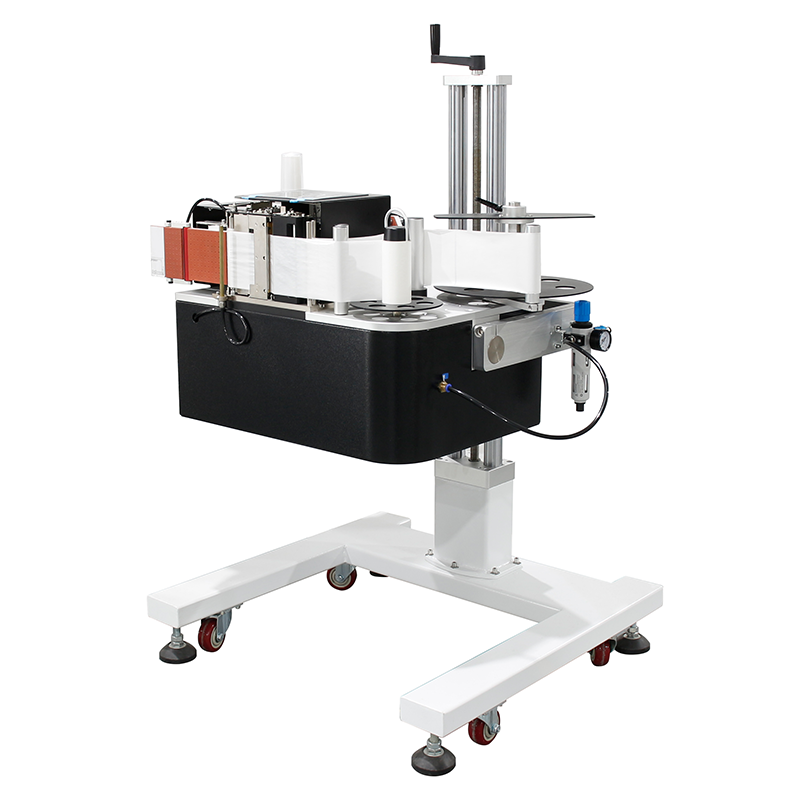

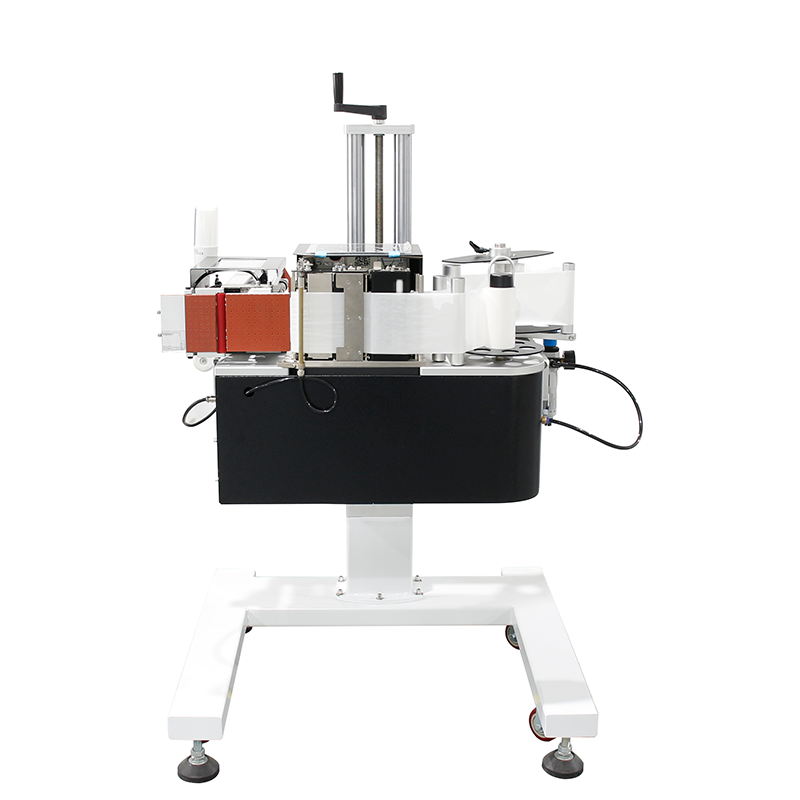

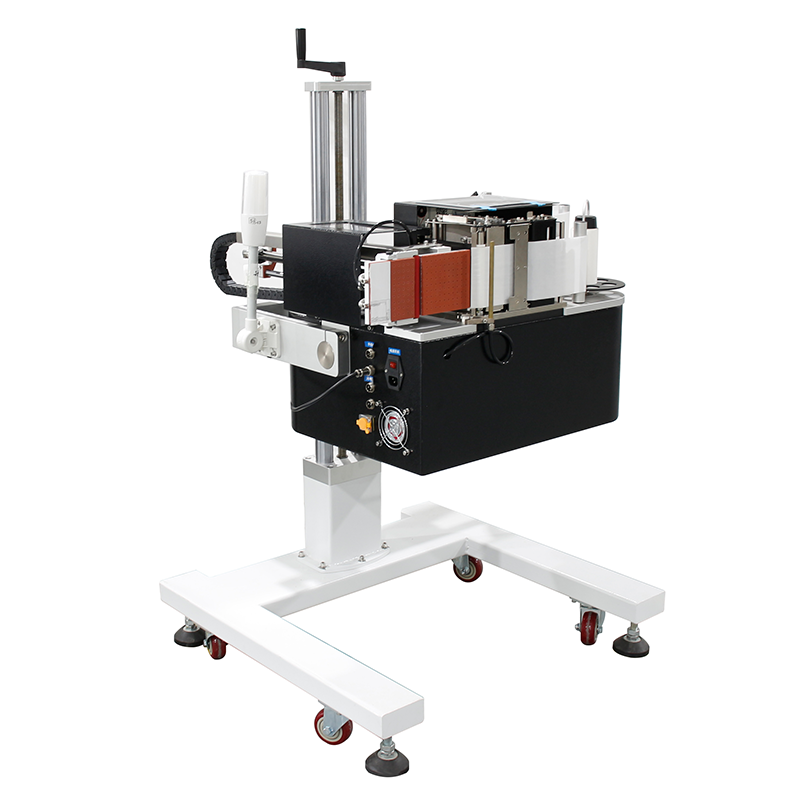

Automated Side Print & Apply Labeler with Precision Corner Wrap
*True On-the-Fly Side Labeling: Prints and applies labels in real-time to the side of your products as they move down the production line, without stopping the conveyor.
*Precision Corner Wrap Application: Expertly wraps labels around product corners, securely adhering to both the side and top faces in a single motion.
*All-in-One Print & Apply System: Integrates a high-resolution industrial printer with a smart applicator for a seamless, efficient labeling solution.
*On-Demand & Dynamic Printing: Instantly prints variable data (barcodes, QR codes, dates, serial numbers) for complete traceability and lot control.
*Robust & Reliable Design: Built for demanding 24/7 industrial environments, ensuring maximum uptime and durability.
*Revolutionize Your Packaging Line Efficiency
Our state-of-the-art Automated Side Print & Apply Labeler is engineered to solve complex labeling challenges. It is the ultimate solution for applications requiring a label to be seamlessly applied to both the side and top of a carton or package—a common need for shipping, logistics, and retail compliance.
*This system eliminates the bottlenecks of pre-printed labels and manual application. By printing labels on-demand and precisely applying them with a corner-wrap technique, it ensures perfect placement every time, even at high line speeds. Boost your productivity, enhance your product's professionalism, and achieve flawless traceability with our intelligent labeling workhorse.
