| Priter Brand | Zebra ZE511-4 |
| Application Type | Tamp-On |
| Media Output | Right |
| Labeling Position | Side |
| Print Method | Thermal Transfer / Direct Thermal |
| Resolution | 203/ 300 DPI |
| Printing Speed | 305MM/S(203DPI) |
| 254MM/S(200DPI) | |
| Labeling Width | 20-104MM |
| Labeling Length | 20-990MM |
| Liner Width | 16-114MM |
| carbon band Width | 25.4-107MM |
| carbon band Thickness | 0.06-0.3MM |
| carbon band Parameters | Core Diameter: 25.4 mm |
| Outer Diameter: 101.61 mm | |
| Length: 600 m | |
| Wind: Wax Side Out | |
| Sensing Mode | Gap Sensor (Transmissive) / Reflective Sensor |
| Label Type | Continuous / Die-Cut (Pitch)/Pre-Die-Cut Labels/Black-Mark Labels |
| Coated Paper/Synthetic Paper/Glassine Liner / Glassine Backing | |
| Label Roll Dimensions | Inner Diameter φ76.2MM |
| Outter Diameter: φ300MM | |
| External Interfaces | RS232 Serial Port / Parallel Port / USB 2.0 / Ethernet Port |
| Memory | 16MB SDRAM、64MB Flash Memory |
| Operating Panel | Touch Screen |
| Pneumatic System | FESTO |
| Overall Dimensions | L820*W1000*H1600MM (Customizable） |
| Labeling Speed | ≤15P/min |
| Lableling Accuarcy | ±2MM |
| Power Supply Specification | 220V/50HZ 1.5KW |
| Machine Weight | 100KG |

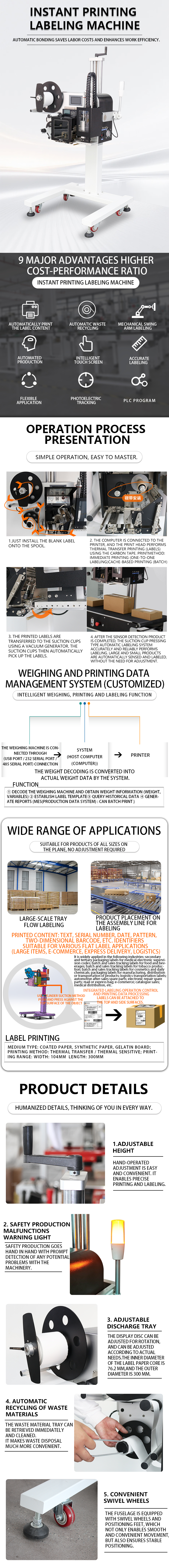

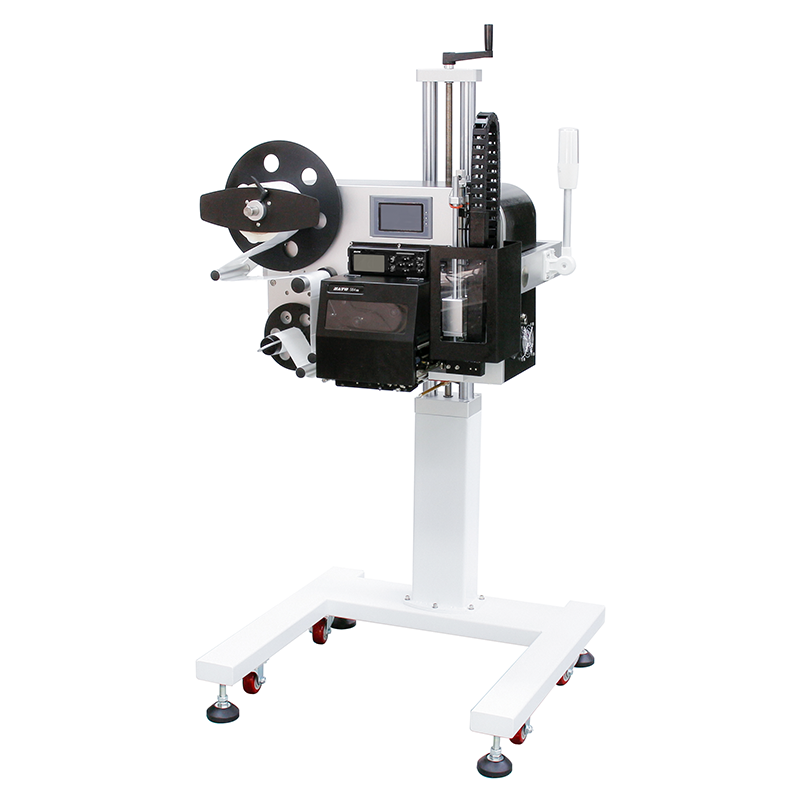

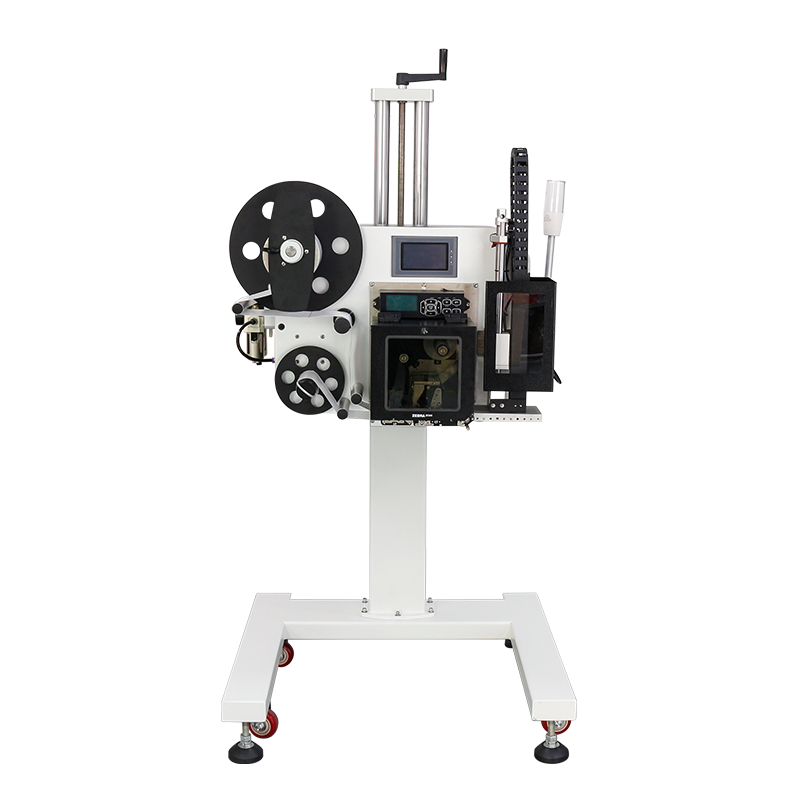

Automated Flat Surface Print & Apply Labeler: Precision Labeling at Production Line Speed
*All-in-One Print & Apply: Integrates high-resolution printing with robotic application in a single, compact unit, saving space and cost.
*True On-the-Fly Operation: Applies labels to flat surfaces of products seamlessly on a moving conveyor, eliminating production bottlenecks.
*On-Demand Variable Data Printing: Instantly prints barcodes, QR codes, dates, and serial numbers for 100% traceability and zero pre-printed label waste.
*Unmatched Accuracy: Advanced vision systems (optional) and precise mechanics ensure perfect label placement every time, even at high speeds.
*Rugged Industrial Design: Built for 24/7 operation in demanding environments, guaranteeing reliability and minimal downtime.
Streamline Your Packaging Line with Fully Automated Labeling
*Introducing our state-of-the-art Flat Surface Print & Apply Labeler, the ultimate solution for automating your labeling process. This system is engineered to deliver high-performance, on-demand labeling directly onto the flat top or side panels of your cartons, trays, and products.
*By combining printing and application in one seamless operation, it eliminates the inefficiencies and errors of manual labeling. Boost your productivity, achieve flawless accuracy, and enhance your supply chain traceability with a system that keeps pace with your fastest production lines. From e-commerce shipping to retail compliance, this is the smart, reliable heart of your modern packaging operation.
