Lift- Facing Label
| Priter Brand | Zebra ZE511-4 |
| Application Type | Tamp-On |
| Media Output | Left |
| Labeling Position | Side |
| Print Method | Thermal Transfer / Direct Thermal |
| Resolution | 203/ 300 DPI |
| Printing Speed | 305MM/S(203DPI) |
| 254MM/S(200DPI) | |
| Labeling Width | 20-104MM |
| Labeling Length | 20-990MM |
| Liner Width | 16-114MM |
| carbon band Width | 25.4-107MM |
| carbon band Thickness | 0.06-0.3MM |
| carbon band Parameters | Core Diameter: 25.4 mm |
| Outer Diameter: 101.61 mm | |
| Length: 600 m | |
| Wind: Wax Side Out | |
| Sensing Mode | Gap Sensor (Transmissive) / Reflective Sensor |
| Label Type | Continuous / Die-Cut (Pitch)/Pre-Die-Cut Labels/Black-Mark Labels |
| Coated Paper/Synthetic Paper/Glassine Liner / Glassine Backing | |
| Label Roll Dimensions | Inner Diameter φ76.2MM |
| Outter Diameter: φ300MM | |
| External Interfaces | RS232 Serial Port / Parallel Port / USB 2.0 / Ethernet Port |
| Memory | 16MB SDRAM、64MB Flash Memory |
| Operating Panel | Touch Screen |
| Pneumatic System | FESTO |
| Overall Dimensions | L800*W670*H1600MM (Customizable） |
| Labeling Speed | ≤15P/min |
| Lableling Accuarcy | ±2MM |
| Power Supply Specification | 220V/50HZ 1.5KW |
| Machine Weight | 100KG |

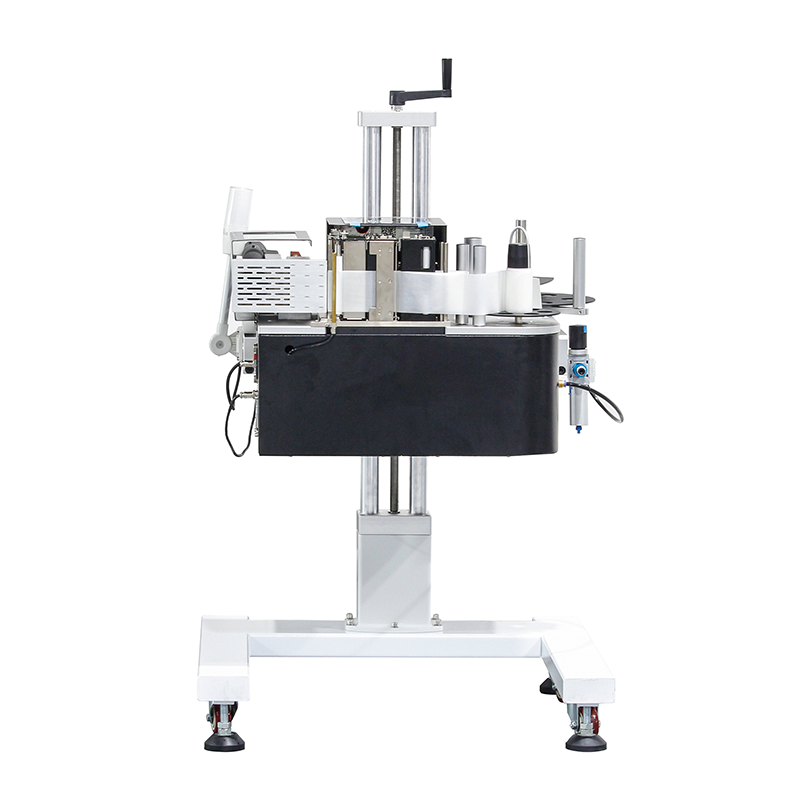

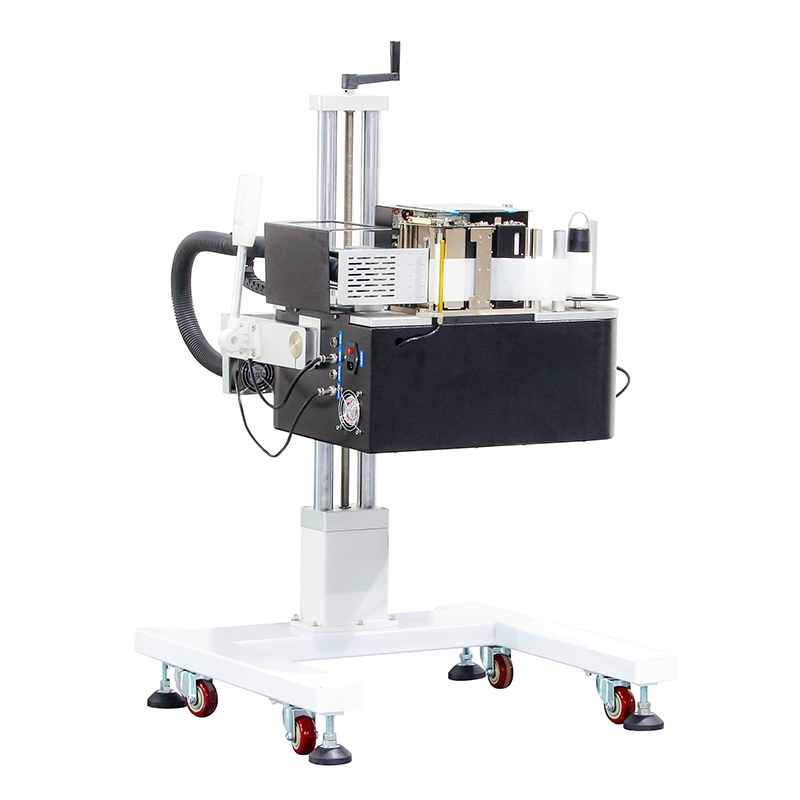

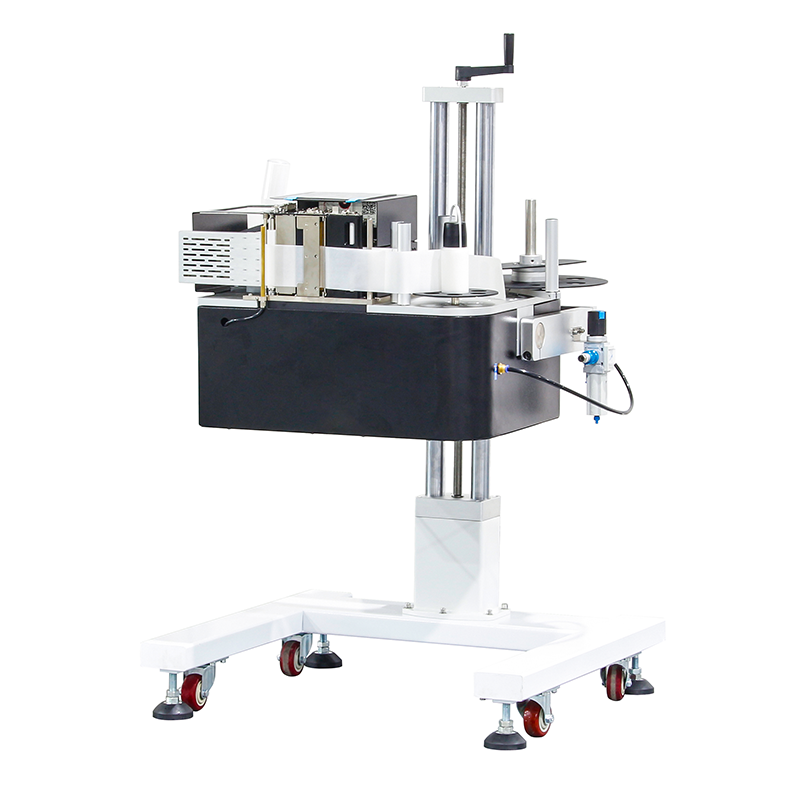

Left-Side Labeling, Perfected: The Ultimate Real-Time Print & Apply Solution
Eliminate manual intervention and ensure 100% accuracy for labels that must be applied to the right-facing side of your products on the conveyor.
*Operating Sequence:
Print Data Received - Label Printed and Dispensed - Product Detected (or External Signal Received) - Label Smoothed (if applicable)
*Core Working Principle:
A computer sends the print data to the printer. Upon initiating the print job, air blowing and vacuum suction activate simultaneously. Once the suction cup picks up the label, the system awaits a product detection signal from the electric eye (sensor). Upon detection, a pneumatic cylinder extends to press and apply the label onto the product surface, completing one cycle of real-time label printing and application.
*Unmatched Right-Side Access: Specifically engineered to target the right-side surface of products on a conveyor, solving a common challenge in automated packaging lines.
*Real-Time Data Accuracy: Print and apply variable information—like barcodes, serial numbers, and shipping addresses—instantly as products pass by, eliminating pre-printed label waste and errors.
*Precision Placement, Every Time: Advanced servo-driven mechanics and product sensing guarantee consistent and precise label placement on the correct side, ensuring scannability and compliance.
*E-commerce Fulfillment: Automatically apply shipping labels to the right side of cartons for efficient sortation and handling.
