| Priter Brand | Squix IX 4 Industrial Inkjet Printer |
| Application Type | Tamp-On |
| Media Output | Left |
| Labeling Position | Top |
| Print Method | Thermal Transfer |
| Resolution | 300 DPI |
| Printing Speed | 300MM/S |
| Maximum Print Width | 104MM |
| Ribbon Width | 25-114MM |
| Label Type | Roll-fed / Fan-fold |
| Labeling Width | 20-104MM |
| Diameter of the Paper Tube | 38.1-76MM |
| Memory | 256AM MB |
| Built-in Flash Memory | 50 IFFS MB |
| Outter Diameter | 205MM |
| Fastest Printing Speed | 300MM/S |
| Memeory | 512G |
| Lableling Accuarcy | ±0.5MM |
| Power Supply Specification | 220V/50HZ 1.5KW |
| Labeling Speed | 20-25P/MIN |
| Machine Weight | 100KG |

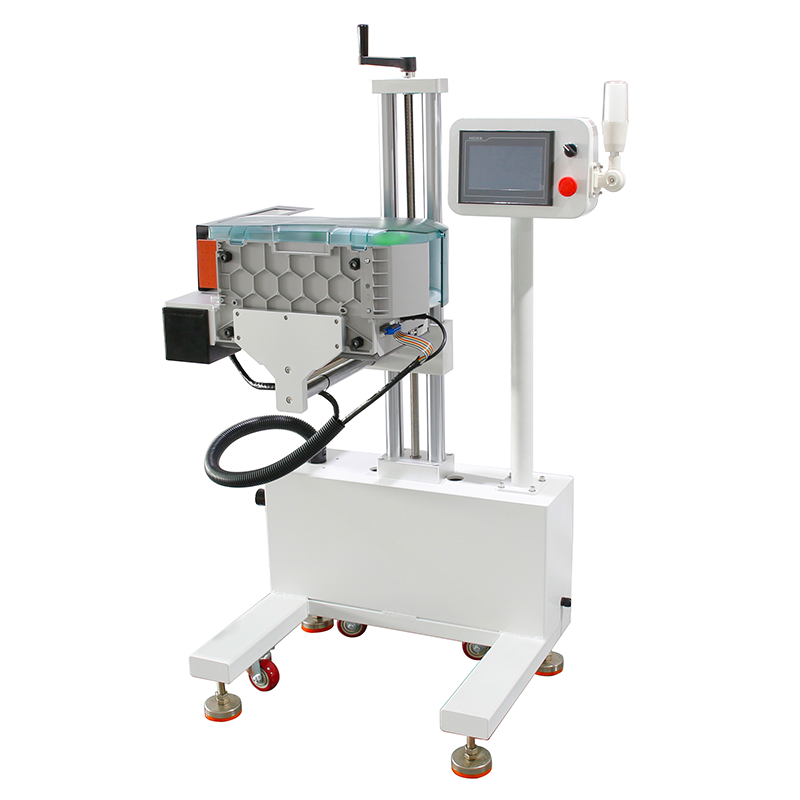

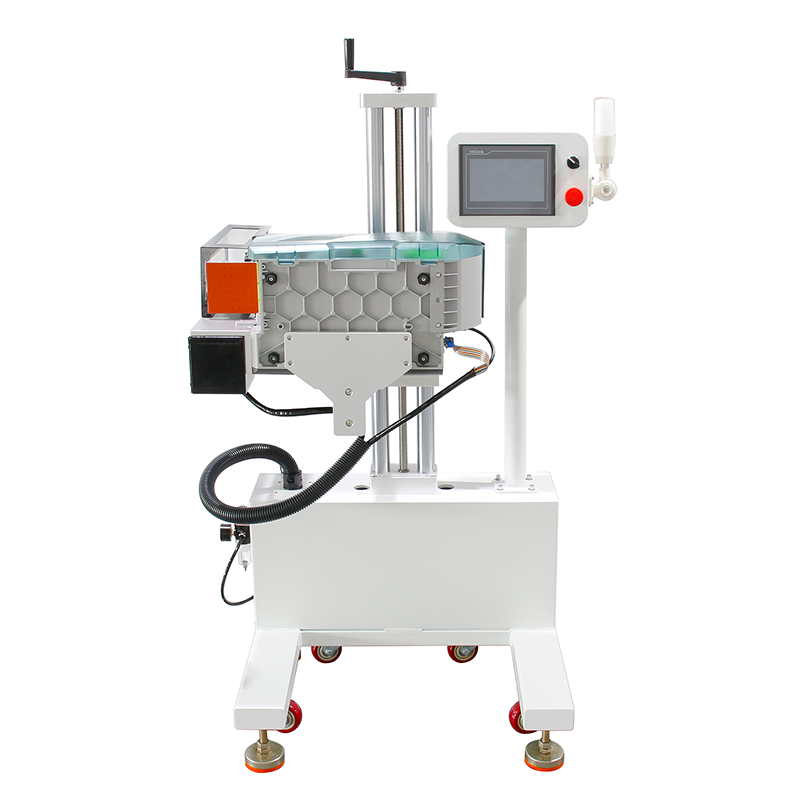

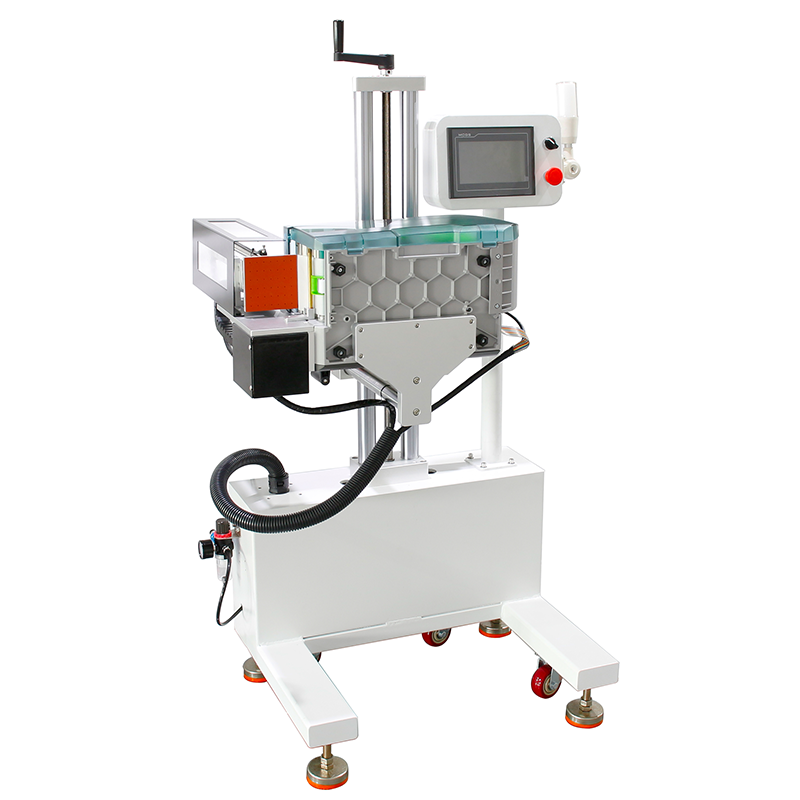

The CAB Vertical Product Side Print & Apply Labeler is a fully automated labeling solution engineered to print and apply high-resolution labels directly onto the vertical side surfaces of products, packages, or cartons on a moving production line.
*Core Function:
It seamlessly integrates printing and application into one compact system, applying labels accurately to the side face of items — ideal for boxes, containers, and other packaged goods that require side-panel identification.
*Key Capabilities:
Vertical Application: Precisely places labels on the side of products without manual handling.
On-Demand Printing: Prints variable data—such as barcodes, QR codes, lot numbers, and expiration dates—directly from your WMS or ERP system.
High-Speed & Reliable: Designed for continuous operation in demanding environments like food, beverage, pharmaceutical, and logistics.
*Easy Integration: Compatible with existing conveyor setups and features user-friendly controls for quick changeovers.
*Primary Benefit:
Eliminates the need for pre-printed labels and manual application, ensuring consistent label placement for improved traceability, compliance, and scanning efficiency — all while reducing labor and material waste.
